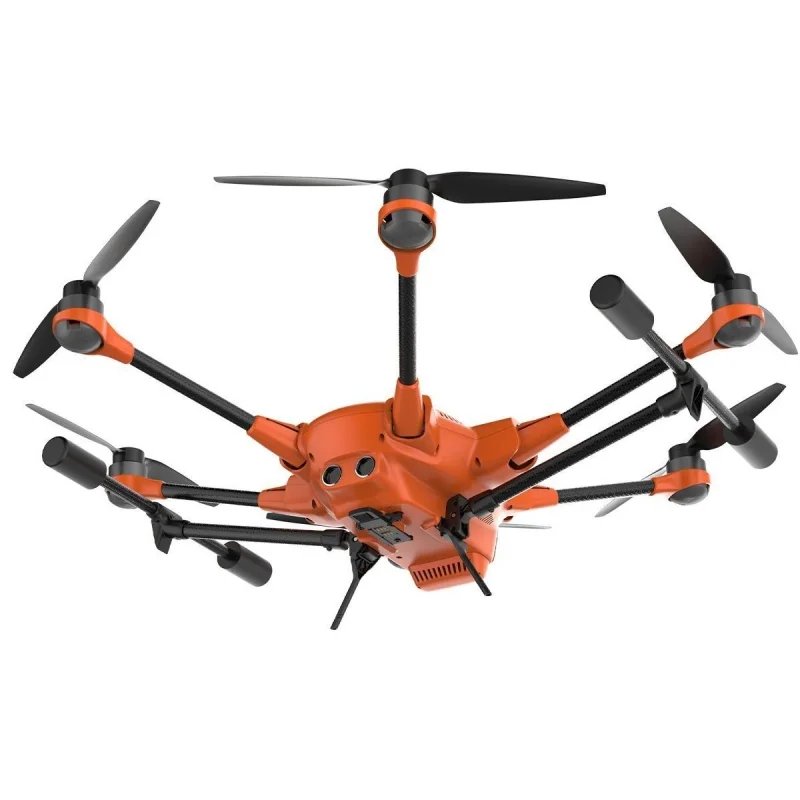

Professional drone Yuneec H520E
The H520E base is considered a versatile solution, as there is no installed camera on board; the user equips the base with a separate camera of the type that meets their tasks. Therefore, one base can be used with different types of Yuneec cameras.
Features:
- Continuous gimbal rotation (H520E up to 330°)
- 5 fail-safe rotors
- 3-axis gimbal
- Up to 28 minutes of flight time (depending on the weight of the suspended load)
- Cameras with quick swap capability, from optical zoom to thermal imaging
- Retractable landing gear
- Built-in 7-inch touchscreen
- Remote camera settings
- DataPilot mission planner
- Radio communication with a range of 4 km
Designed for industrial use and ambitious professionals, the H520E is developed with the needs of the inspection industry in mind and is equipped with a hexacopter system that ensures stable and precise flight, a lens with a long focal length that allows the drone to fly at a great distance from the object, and a data storage that can be transmitted instantly from the ST16S/E ground station or directly in the form of 4K/2K/HD video or 20MP still images.
Reliable, stable, and precise
Even in strong winds, the Yuneec H520E drone system can maintain its position, allowing it to fly even when crewed inspections are considered dangerous. Speed control ensures a minimum flight speed after descent for maximum accuracy in challenging conditions. The H520E landing gear retracts sideways, providing a full 360-degree view for collecting important data in the field. Additionally, commercial service packages are available separately.
No data transmission to remote servers
Your data belongs to you. The H520E drone and the ST16S/E remote control exchange data directly, so there is no forced data transmission to servers in China, Germany, or elsewhere in the world. Neither flight data nor images, videos, or log files are sent to external servers and remain at your disposal. Thus, your data is optimally protected.
Orbital flight
Orbital flight allows the H520E to rotate around the pilot/remote control at a user-defined distance, always pointing the camera at the center of the circle.
Quick swap payload options
All our H520E cameras support quick swapping on our sUAS platforms, significantly saving time by eliminating the need to power off/restart the USA system. This also ensures consistency in data storage rather than using multiple storage devices and locations. Whether thermal imaging, long focal length shooting, or wide focal length data collection, memory cards can be transferred from device to device.
Supported devices:
- Yuneec 30 Zoom X-connector
- Weight: 518 g
- Operating temperature: -10°C – 40°C
- Mounting: Quick-release
- Max. angular speed: Tilt: 50°/sec Pan: 50°/sec
- Control range: E30Z (Tilt: +30° to 120° Pan: ± 360°); E30ZX (Tilt: +30° to 120° Pan: ±165°)
- Sensor: 1/2.8" CMOS, Effective pixels: 2.13MP
- Lens: Field of view: 63.7° (Wide) – 2.3° (Tele). F:F1.6 (Wide) – F4.7 (Tele). 30x optical zoom + 6x digital zoom
- Photo: 16:9 1920x1080
- Video: Codec: H.264. Resolution: 1920x1080 (60FPS, 50FPS, 30FPS, 25FPS)
- Photo format: JPG
- Video format: MP4
- Photo modes: Single, time-lapse
- Exposure mode: Auto, manual, shutter priority, aperture priority
- Exposure compensation: ± 30°
- Metering modes: Spot, average
- Shutter speed: 1/1 – 1/10000 s
- White balance: Auto, manual (1000 – 2000K)
- ISO range: 100 – 6400
Yuneec E90x 1" Pro Camera
- Weight: 300 g
- Operating temperature: -10°C – 40°C
- Mounting: Quick-release, interchangeable
- Max.°/s Pan: 120°/s
- Range: E90 (Tilt: +30° to 120° Pan: ±360°), E90X (Tilt: +30° to 120° Pan: ±165°)
- Sensor: 1" CMOS, effective pixels: 20MP
- Lens: Field of view 91° F/2.8 23mm
- Photo: 3:2 5472 x 3648, 4:3 4864 x 3648, 16:9 5472 x 3080
- Video: H.264
- Photo formats: JPG, JPG+DNG
- Video formats: MP4
- Photo modes: Single, time-lapse
- Exposure modes: Auto, manual
- Exposure compensation: ±3.0
- Metering modes: Spot, center-weighted, average
- Shutter speed: 4 – 1/8000 s
- White balance: Auto, Incandescent, Sunrise, Sunset, Cloudy, Fluorescent, Lock
- ISO range: 100 – 6400
Yuneec E20Tvx Camera
- Weight: 358 g
- Vibration range: ±0.02°
- Control range: Tilt: -110° to 30°/Pan: ± 165°
- Max. angular acceleration: Tilt: 30°/s, Pan: 120°/s
- Operating temperature: -10°C – 40°C
- Field of view, diagonal: 41.4°
- Field of view: 33° x 26.6°
- Sensitivity: Pixel pitch: 12um
- LWIR wavelength: 8 – 14 μm
- Frequency: Full Frame Rate: 25Hz
- Photo format: JPEG
- Video format: MP4
- Temperature compensation: Auto
- Resolution: 640x512
- Temperature measurement range: High Gain -20°-150° Low Gain 100°-500°
- Sensor: 1/2.8" 2.13MP
- Aperture: F2.8
- Focal length: 23 mm
- Diagonal field of view: 90°
- ISO range: 100-3200
- Shutter speed: 1/30-1/8000 s
- Video resolution: 1920*1080p 60fps
Yuneec E10Tx Camera
- Weight: 364 g
- Vibration range: ±0.02°
- Controlled range: Tilt: from -110° to 30°/Pan: ±165°
- Max angular acceleration: Tilt: 15°/s, Pan: 120°/s
- Operating temperature: -10°C – 65℃
- Field of view, diagonal: 24°
- Sensitivity: Pixel pitch: 12um
- Frequency: Exported frequency
- Photo format: JPG, TIFF
- Video format: MP4
- Temperature compensation: Auto
- Resolution: 320x256
- Temperature measurement range: High gain -25 ℃-100 ℃/Low gain – 40 ℃-550 ℃
- Sensor: 1/2.8", 2.13 MP
- Aperture: F2.8
- Focal length: 23 mm
- ISO range: 100-3200
- Shutter speed: 1/30-1/8000 s
- Video resolution: 1920x1080/25 frames per second
Yuneec CGOET Typhoon H 3X Camera
Universal controller ST16S/E
The ST16S/E ground station is a comprehensive transmitter and receiver that gives you full control over the H520E during flight, allowing users to take photos and videos in excellent quality. The built-in ST16S/E controller screen based on Android displays footage of your flight in real-time, eliminating the need for an external device. You can also use the ST16S/E as a mission planner.
Plan your flight using the touchscreen and execute tasks with the push of a button.
Functionality of command mode
Command mode allows you to independently control the copter and camera using two remote control systems. While the drone pilot continues to control the copter, the camera operator can fully focus on the camera. This collaboration significantly eases the capture of complex images and provides a useful tool for not only filmmakers but also firefighters, inspectors, and other commercial users for more precise collaboration.
YUNEEC DataPilot
The Yuneec DataPilot software system allows users to efficiently and consistently create orthomaps, 3D scans, crop data images in the field or on the desktop for reproducible and memorable flight trajectories without the need for expensive third-party software. Missions/flights can be saved for later recall/relaunch or planned off-site and transferred to the email management system, flash memory, or micro-SD card. DataPilot automatically generates shooting trajectories with user-defined frontal/side overlap and cross-stitching for accurate 3D images or large format images. DataPilot also allows saving/caching maps from many card providers for access in areas without connectivity and provides tools for accurately placing waypoints even in areas where no updated maps are available.
```
