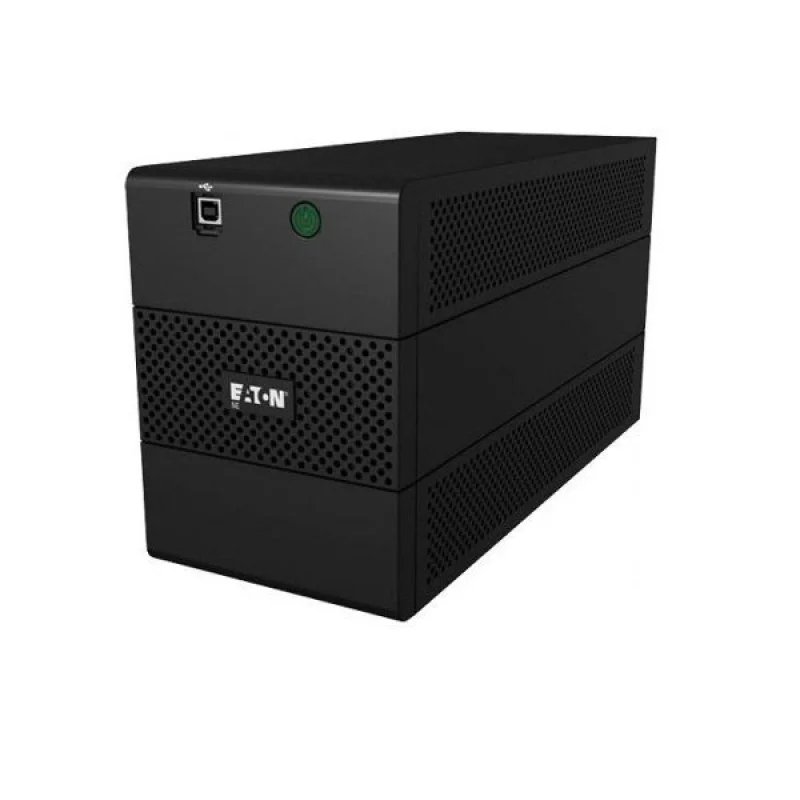

UPS Eaton 5E 1100VA, USB

Economically efficient and reliable power protection, the Eaton 5E is a basic UPS with a line-interactive topology that provides cost-effective and reliable power protection against voltage loss or poor quality power supply. Thanks to its compact size, the model can be easily placed in an office or at home. Features: - Operates under reduced or increased network voltage without switching to battery mode, thanks to the Automatic Voltage Regulation (AVR) function. - You can be confident in the batteries at any time: the batteries are constantly charged (even when the UPS is turned off), so the UPS can start without being connected to the mains (Cold Start). - The 5E USB models are equipped with line communication protection (Internet/Phone/Fax). - Easily connect any equipment (PC, HD TV, router, etc.) to the UPS thanks to the IEC and Schuko sockets (in DIN models). - The 5E can be installed anywhere due to its compact size. - Simple UPS management from a PC. UPS Type: - Type: Interactive (line-interactive) - Purpose: For home, for computer Output Power: - Volt-Amperes: 1100 VA - Watts: 660 W Input Network Parameters: - Nominal Voltage: 230 V - Minimum Voltage (for operation from 220V mains): 170 V - Maximum Voltage (for operation from 220V mains): 280 V - Frequency: 50/60 Hz - Frequency Deviation Range: ± 2% (± 1 Hz) Output Parameters: - Nominal Voltage: 230 V (in battery mode: ± 10%) - Frequency: 50/60 Hz (± 1 Hz) - Switching Time: 4-8 ms (10 ms maximum) Battery Parameters: - DC Voltage: 24 V (2x 12 V) - Total Battery Capacity: 14 Ah (2x 7 Ah) - Charging Time: 6 hours - Battery Deep Discharge Protection Connectors: - PC Connection Interface: USB - Input Sockets: (1) IEC-320-C14, RJ-11 - Output Sockets: (6) IEC-320-C13, RJ-11 Physical Characteristics: - Width: 180 mm - Height: 330 mm - Depth: 133 mm - Weight: 9.22 kg Additional Features: - Automatic Voltage Regulation - Cold Start Environment: - Operating Temperature Range: – 40°C - Operating Relative Humidity Range: – 90% - Storage Temperature: -10 – 35°C - Storage Relative Humidity: – 90% - Acoustic Noise Level at 1 meter from the device surface: 45 dBA Compliance: - Compliance with requirements: IEC/EN 62040-1, IEC/EN 62040-2, CE, CB. Package Includes: - 1 UPS - USB cable Safety Rules: - Quick Installation Guide - Eaton UPS Companion Software
