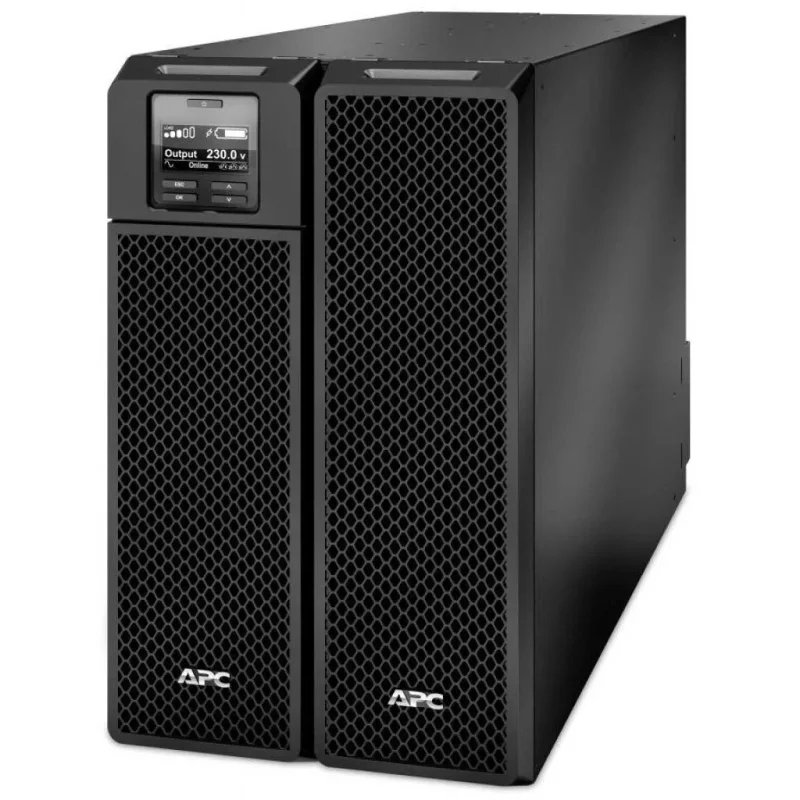

UPS APC Smart-UPS SRT 8000VA

```html Characteristics Type: Double Conversion UPS (on-line) Purpose: For home, for computer Output Power Volt-amperes: 8000 VA Watts: 8000 W Input Network Parameters Nominal Voltage: 230/400 V (3 phases) Minimum Voltage (for operation from 220V network): 160 V Maximum Voltage (for operation from 220V network): 275 V Frequency: 50/60 Hz Frequency Deviation Range: ± 20% (10 Hz) Output Parameters Nominal Voltage: 230 V (± 3%) Frequency: 50/60 Hz (± 3 Hz) Efficiency at Full Load: 94.8% (at 50% load: 94.7%) Transfer Time: MS (Continuous) Battery Parameters DC Voltage: 96 V (8x 12 V) Charging Time: 1.5 hours Autonomy Time at Max Load: 5.2 min (at 50% load: 14.5 minutes) Additional Battery Connection Capability: + (up to two sets) Filtering and Protection Wired (computer) network protection: + (RJ-45) Telephone line protection: + (RJ-45) Surge Suppression: 480 J Overload Protection: + Overvoltage Protection: + Deep Discharge Protection for Batteries: + Connectors PC Connection Interface: USB SmartSlot: 1 pc. Input Connectors: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N+G), RJ-45 Output Connectors: (1) Hard Wire 3-wire (HN + G), (6) IEC 320-C13, (4) IEC 320-C19, (3) IEC Jumpers, RJ-45 Physical Characteristics Width: 263 mm Height: 432 mm Depth: 715 mm Weight: 111.82 kg (gross: 126.82 kg) Additional Characteristics Topology: Double Conversion (Peak Factor 03:01) Bypass: Internal (with automatic or manual switching) Battery Type: Maintenance-free sealed lead-acid battery with gelled electrolyte: leak-proof Emergency Power Off (EPO) Output Voltage Waveform Type: Pure Sine Wave Operation (Input Voltage Range): 100-275 V (50% load) – at 230 V / 173-476 V (50% load) – at 400 V Control Panel: Multifunctional control and management console with LCD display Audible and visual alarms with a priority system based on the severity of the event Operating Ambient Temperature Range: 0-40°C Operating Relative Humidity Range: 0-95% Operating Altitude Range: 0-3000 meters Storage Temperature: -15...+45°C Storage Relative Humidity: 0-95% Storage Altitude: 0-15000 meters Acoustic Noise Level at 1 meter from the device surface: 55.00 dB(A) Heat Dissipation in Network Mode: 1497.00 BTU/hour Protection Class: IP 20 Package Includes: UPS Power Cord Software CD Documentation CD Installation Manual Temperature Sensor USB Cable Web/SNMP Management Card ```
