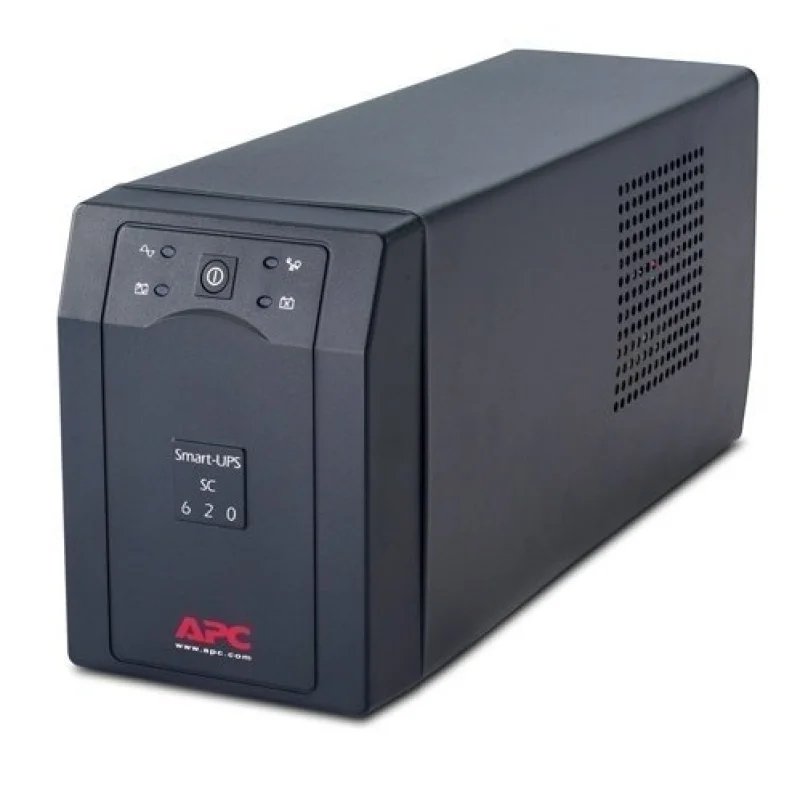

UPS APC Smart-UPS SC 620VA

```html Characteristics Type: UPS Interactive (line-interactive) Purpose: For computer Output Power Volt-amperes: 620 VA Watts: 390 W Input Network Parameters Nominal Voltage: 230 V Minimum Voltage (for operation from 220V network): 160 V Maximum Voltage (for operation from 220V network): 286 V Frequency: 50/60 Hz Frequency Deviation Range: ± 6% Output Parameters Nominal Voltage: 230 V Frequency: 50/60 Hz (± 3 Hz) Efficiency at Full Load: 95% Battery Parameters Charging Time: 5.5 hours Backup Time at Max Load: 5.5 minutes Filtering and Protection Wired (computer) network protection: + Telephone line protection: + Surge suppression: 320 J Load protection: + Overvoltage protection: + Battery deep discharge protection: + Connectors PC Connection Interface: DB9/RS-232 (COM) Input Connectors: IEC-320-C14 inlet Output Connectors: 4 x IEC 320 C13; 2 x IEC Jumpers Physical Characteristics Width: 119 mm Height: 168 mm Depth: 375 mm Weight: 12.27 kg ```
