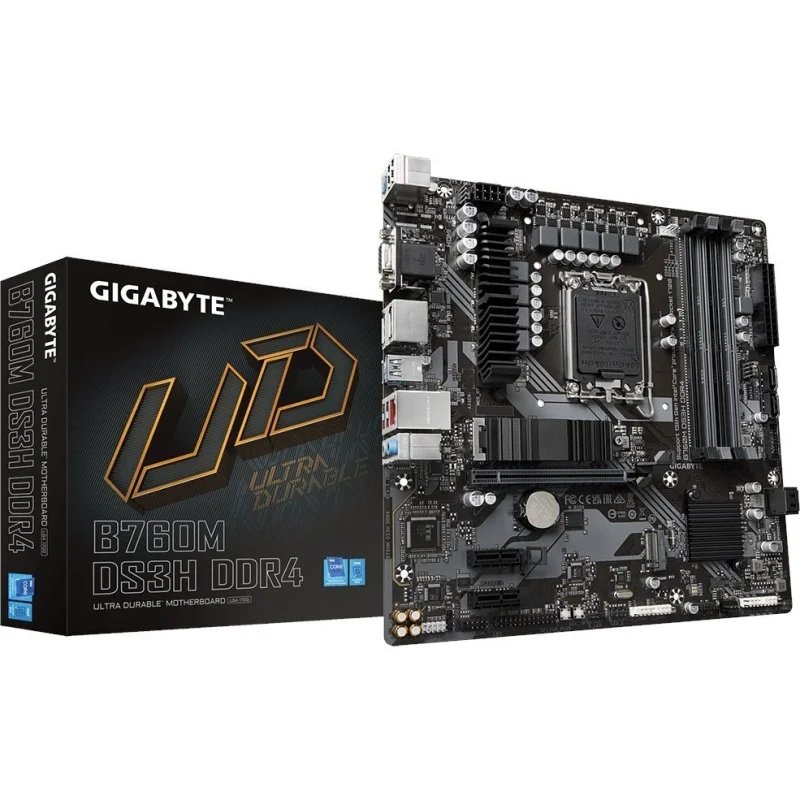

Motherboard GIGABYTE B760M DS3H s1700

6+2+1 Phase Hybrid Design Digital VRM 6+2+1 phase MOSFET with low RDS(on) High-quality chokes and capacitors to improve transient response and minimize fluctuations PCIe 4.0 Design GIGABYTE B760 motherboards are ready to work with PCIe 4.0 devices, whose bandwidth is expected to be three times higher than that of current PCIe 3.0 devices. To achieve high speeds and maintain signal integrity, GIGABYTE uses a low-resistance printed circuit board to ensure maximum performance. Support for DDR4 XMP up to 5333 MHz and beyond GIGABYTE offers a tested and proven platform that ensures compatibility with profiles up to 5333 MHz and beyond. To achieve such performance gains, simply ensure that the memory module supports XMP and that the XMP feature is activated and enabled on another GIGABYTE board. Shielded Memory Routing All memory routing is done under the inner layer of the printed circuit board, shielded by a large ground layer to protect against external interference. Gigabyte PerfDrive PerfDrive technology combines several exclusive GIGABYTE BIOS settings, allowing users to easily balance between different levels of performance, power consumption, and temperature depending on their needs when using Intel Core 13th generation processors. Highly Efficient M.2 Thermal Protection GIGABYTE offers solutions to prevent overheating of M.2 solid-state drives. The M.2 Thermal Guard system prevents throttling and bottlenecks in high-speed M.2 SSDs by helping dissipate heat before it becomes a problem. Smart Fan 6 Smart Fan 6 includes several unique cooling features that allow a gaming PC to maintain its performance while staying cool and quiet. Multiple fan headers support PWM/DC fans and pumps, and users can easily set the operating curve of each fan based on various temperature sensors using an intuitive user interface. Cooling Features High current support - each fan header supports PWM fans and DC fans, as well as a water cooling pump with a power of up to 24W (12V x 2A) with overcurrent protection. Precise control - multiple temperature/fan speed control points for precise fan curve adjustments Dual curve mode - dual "slope/stair" mode for different user scenarios Fan stop - the fan can completely stop below the user-defined temperature Smart Fan 6 BIOS UI Improved fan curve user interface - we increased the number of control points from 5 to 7 and expanded the fan speed graph for more precise and convenient fan curve control. Dual graph mode Slope/Stair - the fan curve can be quickly switched between Slope and Stair modes for different user scenarios. Slope is the traditional and intuitive linear fan speed curve. In the new non-linear Stair mode, the fan maintains the same speed between defined temperature intervals. Manual input - for advanced users, manual fan speed input is provided for more precise control. EZ Tuning - you can set 4 EZ Tuning points for rough temperature/fan speed values, and Smart Fan 6 will quickly generate the fan curve. Fan curve profile - the fan curve profile can be saved in the BIOS firmware, and the profile will be retained after a BIOS update. Connectivity GIGABYTE motherboards provide the highest data transfer speeds through next-generation networks and storage systems. First on board with 2.5GbE LAN Using 2.5 GbE LAN provides network connectivity of up to 2.5 Gbps, which is at least twice the data transfer speed compared to standard 1 Gbps networks. Perfect for gamers who want to maximize their online gaming experience. Support for multi-gigabit (10/100/1000/2500 Mbps) Ethernet RJ-45 High-quality audio capacitors GIGABYTE motherboards use high-grade audio capacitors. These high-quality capacitors provide high resolution and sound accuracy, allowing for the most realistic sound effects for gamers. Audio noise protection GIGABYTE motherboards are equipped with audio noise protection, which helps isolate sensitive analog audio components from potential noise interference at the PCB level. Customization GIGABYTE motherboards come with several useful and intuitive applications that allow you to control every aspect of the motherboard's operation and provide customizable lighting effects with outstanding aesthetic characteristics according to your individuality. UEFI BIOS User-friendly interface - in EASY MODE, important hardware information is displayed on one page, including CPU clock, memory, storage, and fans. My Favorites - add frequently used items to favorites for quick access. Storage Information - displays all types of information about storage devices, including SATA, PCIE, and M.2 interfaces. Changelog - a list of all changes before saving and exiting the BIOS. Quick overview of all setting changes. Intuitive load line curve - a visual representation of each load line calibration parameter in the form of an intuitive curve graph. GIGABYTE Control Center Gigabyte Control Center (GCC) is the single software for all GIGABYTE supported products. It features a new intuitive user interface for managing all major functions. Single software platform for all supported GIGABYTE products Intuitive user interface for ease of use Modular control components only for installed hardware Automatic update feature to keep the system up to date and support future products Multifunction button A multifunction reset button that can be reassigned to another function in the BIOS for various user scenarios. RGB switch - turns off all lighting effects on the motherboard. Direct-To-BIOS - direct boot into the BIOS menu without pressing any keyboard buttons. Safe Mode - boot into safe BIOS mode to change specific parameters without losing other BIOS settings. PCIe EZ-Latch Allows easy unlocking of the PCIe slot latch when removing the graphics card from the PCIe slot.
