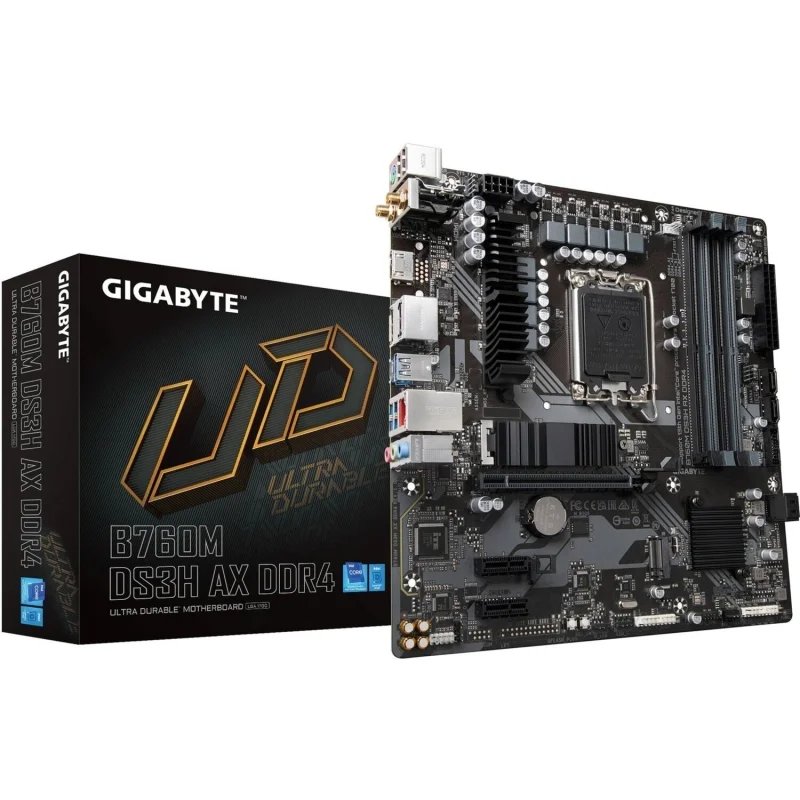

Motherboard GIGABYTE B760M DS3H

Performance. Hybrid Digital Design VRM6+2+1 phase hybrid digital VRM; 6+2+1 phase MOSFETs with low RDS(on). Premium chokes and capacitors enhance transient response and minimize fluctuations. PCIe 4.0 Design. GIGABYTE B760 motherboards are ready to work with PCIe 4.0 devices, with expected bandwidth tripled compared to current PCIe 3.0 devices. To achieve high speeds and maintain good signal integrity, GIGABYTE R&D utilizes a low-impedance PCB that ensures maximum performance. DDR4 XMP. Support for DDR4 XMP up to 5333 MHz and beyond. GIGABYTE offers a tested and verified platform that ensures proper compatibility with profiles up to 5333 MHz and beyond. All users need to do to achieve this performance boost is to ensure their memory module supports XMP, and that the XMP function is activated and enabled on another GIGABYTE board. Shielded Memory Routing. All memory routing is located beneath the inner layer of the PCB, protected by a large ground layer to shield against external interference. PerfDrive Technology. PerfDrive technology combines several exclusive BIOS settings from GIGABYTE, allowing users to easily balance between different levels of performance, power consumption, and temperature according to their needs when using Intel Core 13th generation processors. Max Turbo allows the Intel 13th generation Core CPU to operate at maximum Turbo Boost speed. Optimization. The optimization mode allows the Intel 13th generation Core processor to balance between high performance and low temperature. Specification Enhancement. The Spec Enhance mode allows the Intel 13th generation Core CPU to operate at high performance at lower temperatures. E-Core Disable. The E-Core Disable mode allocates CPU resources exclusively to the P-core to enhance gaming performance while reducing overall power consumption of the processors. M.2 Thermal Protection. GIGABYTE Ultra-Efficient M.2 Thermal Guard. Considering longevity, GIGABYTE offers a thermal solution for M.2 solid-state drives. M.2 Thermal Guard prevents throttling and bottlenecks of high-speed M.2 SSDs by helping dissipate heat before it becomes a problem. Smart Fan 6. Smart Fan 6 features several unique cooling functions that ensure the gaming PC maintains performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define the curve of each fan based on various temperature sensors through an intuitive user interface. Cooling Features: Strong Current Support. Each fan header supports PWM and DC fans, water cooling pumps, and power up to 24W (12V x 2A) with overcurrent protection. Precision Control. Multiple temperature/fan speed control points for accurate fan curve. Dual Curve Mode. Dual slope/stair mode for different user scenarios. Fan Stop. The fan can completely stop at temperatures below the user-defined temperature. Smart Fan 6 User Interface for BIOS. Improved fan curve user interface. We increased the control points from 5 to 7 and expanded the fan speed graph for more precise and easier fan curve management. Dual slope/stair graph mode. The fan curve can be quickly switched between slope and stair modes for different user scenarios. Slope represents a traditional and intuitive linear fan speed curve. With the newly added non-linear "Stair" mode, the fan maintains the same speed within the specified temperature range. Manual Input. For advanced users, manual fan speed input is provided for more precise control. EZ Tuning. Users can place 4 EZ tuning points for approximate temperature/fan speed, and Smart Fan 6 can quickly create a fan curve. Fan Curve Profile. The fan curve profile can be saved in the BIOS EEPROM, and the profile will be retained after a BIOS update. Connectivity. GIGABYTE motherboards provide unparalleled connectivity options with lightning-fast data transfer speeds through next-generation networking, storage, and Wi-Fi connectivity. 802.11ax Wi-Fi 6E. The latest wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6 GHz band provides gigabit wireless communication, ensuring smooth video streaming, better gaming performance, fewer connection dropouts, and speeds of up to 2.4 Gbps*. Additionally, Bluetooth 5 offers 4 times the range compared to BT 4.2 and faster transfer speeds. Advantages of Wi-Fi 6E: 1. Dedicated spectrum in the 6 GHz band to reduce interference. 2. 5.5 times higher bandwidth than 802.11ac 1x1. 3. 4 times higher network capacity, no congestion, especially in densely populated areas with many devices. 4. Increased network efficiency for user convenience. Wi-Fi 6E offers you the ultimate VR experience! Wi-Fi 6E provides higher Wi-Fi speeds, lower latency, and better battery life for VR devices, meaning wireless streaming of VR games from your PC to your VR device results in smoother operation and higher video quality. Compared to Wi-Fi 5, Wi-Fi 6E offers 40% higher speeds for smoother gaming and streaming playback, 50% higher resolution for video game-related content, and increased battery life for virtual reality devices. Advantages of Wi-Fi 6E. Spectrum congestion is a serious issue in today's Wi-Fi environment because too many devices use the existing 2.4 GHz and 5 GHz spectrum, leading to unreliable connections and reduced speeds. Wi-Fi 6E is an extended standard to Wi-Fi 6, utilizing a dedicated 6 GHz band that provides not only a completely new frequency for data transmission but also a wide range for future devices. With Wi-Fi 6E, users can enjoy faster connections and stronger signals than ever before. 2.5GbE LAN. The first user of built-in 2.5GbE LAN. Twice as fast as ever. The implementation of 2.5G LAN provides network connectivity up to 2.5 GbE with at least double the transmission speed compared to a standard 1GbE network, perfectly designed for gamers seeking maximum online gaming experience. Supports Multi-Gig (10/100/1000/2500 Mbps) RJ-45 Ethernet. Rear USB-C 10 Gbps. The connection of the future - USB 3.2 Gen 2 Type-C. The new universal connector in the world. USB Type-C is a new reversible connector with useful features such as support for USB 3.2 Gen 2 with data transfer speeds of 10 Gbps. This small port, equipped with an Intel USB 3.2 Gen 2 controller, provides the best USB Type-C capabilities. Hi-Fi Audio. High-quality audio capacitors. GIGABYTE motherboards use high-quality audio capacitors. These high-quality capacitors help reproduce high-resolution and high-accuracy sound, providing the most realistic sound effects for gamers. Audio noise shield. GIGABYTE motherboards are equipped with audio noise protection, which essentially separates sensitive analog audio components of the board from potential noise pollution at the PCB level. Personalization. GIGABYTE motherboards come with several useful and intuitive applications that help users control every aspect of the motherboard and provide customizable lighting effects with outstanding aesthetics to match your unique personality. UEFI BIOS. User-friendly interface. EASY MODE displays important hardware information on one page, including CPU clock, memory, storage, and fan. My Favorites. Add frequently used items to the favorites menu for quick access. Storage Information. Show all types of storage information, including SATA, PCIE, and M.2 interfaces. Change List. List all changes before saving and exiting the BIOS. Quickly review overall settings changes. Intuitive Load Line Calibration Curve. Clearly display each load line calibration setting on an intuitive curve graph. GIGABYTE Control Center. GIGABYTE CONTROL CENTER (GCC) is unified software for all supported GIGABYTE products. It provides a newly designed intuitive user interface for managing all key functions. A single software platform for all supported GIGABYTE products. Intuitive user interface for ease of use. Modular control components only for installed hardware. Automatic update feature to keep the system up to date and support future products. Multi-Key. Multifunction reset button that can be reassigned to another function in the BIOS for various user scenarios. RGB Switch. Turn off all lighting effects on the motherboard. Direct access to BIOS. Boot into the BIOS menu directly without pressing any keys on the keyboard. Safe Mode. Boot into BIOS safe mode to change a specific parameter without losing other BIOS settings. EZ PCIe Latch. Easily unlock the PCIe slot latch when removing the graphics card from the PCIe slot. Q-Flash Plus. Easily update the BIOS without installing the CPU, memory, and graphics card. With GIGABYTE Q-Flash Plus, you do not need to install the CPU, memory, and graphics card, nor enter the BIOS menu to flash the BIOS. Just download and save the new BIOS file (rename it to gigabyte.bin) on a USB drive, then press the dedicated Q-Flash Plus button, and you're all set! Step 1. Connect the 24-pin and 8-pin power cables to the motherboard. Step 2. Download the motherboard BIOS file and rename it to "gigabyte.bin", save it on a USB drive, and insert the USB drive into the Q-Flash USB port. Step 3. Press the Q-Flash Plus button, and the motherboard will automatically begin the BIOS update.
