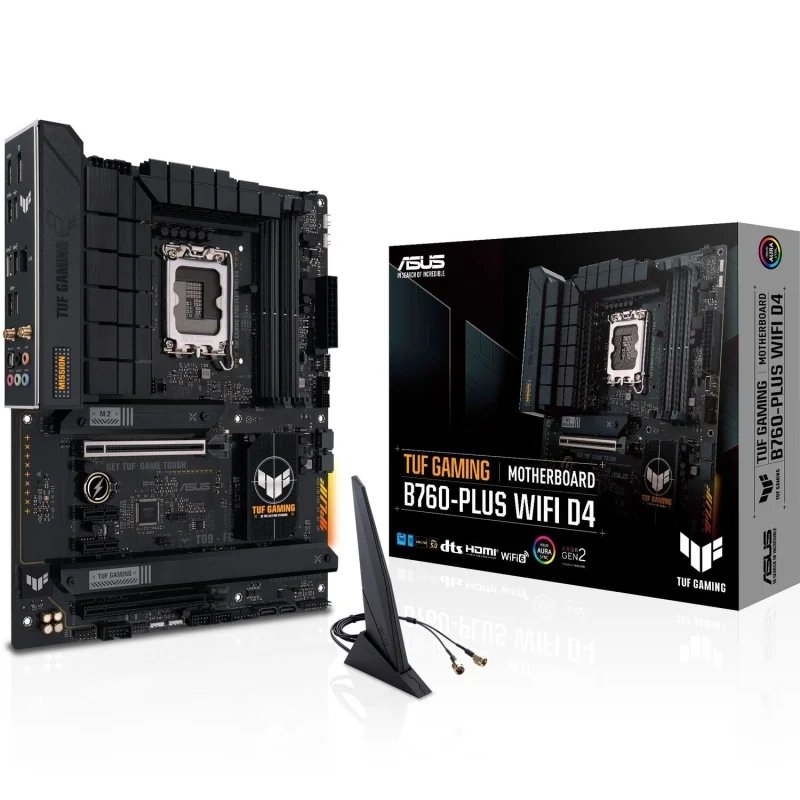

Motherboard ASUS TUF GAMING B760-PLUS WIFI D4

```html Intelligent Control
The TUF GAMING B760 motherboard offers flexible means to adjust various computer parameters to adapt performance to current tasks.
Low Power Consumption
The energy-saving feature provides several options to optimize power consumption. You can enable a CPU power limit, reduce the brightness of the Aura lighting, and select a fan profile that corresponds to maximum energy savings. You can also enable the power-saving plan built into Microsoft Windows.
UEFI BIOS
The ASUS UEFI BIOS interface provides everything needed for configuring, overclocking, and monitoring a system built on modern processors. It has modes for both beginners and experienced users.
Fine-Tuning
The Advanced mode in UEFI BIOS is designed for fine-tuning the system and offers a built-in parameter search function. Optimize computer settings, save profiles with configurations, and overclock components to fully realize the potential of the processor.
Search Function
Helps quickly find the desired parameter in the UEFI BIOS menu.
ASUS User Profile
Save configuration settings for BIOS updates or to share them with friends.
Easy and Fast Setup
In EZ Mode, the essential parameters, statistics, and wizards for step-by-step system setup are displayed. It is perfect for quick initial computer setup.
Intuitive Fan Control
Simply change the shape of the graph to adjust the speed using the mouse.
Stealth Mode
Turn the Aura lighting (or any built-in LEDs) on and off.
High Performance
The updated power subsystem and compatibility with various cooling systems, considering the needs of modern Intel processors, support for high-speed DDR4 memory, and modern PCIe 4.0 interface storage devices make the TUF GAMING B760-PLUS WIFI D4 motherboard an ideal foundation for building a computer with an Intel processor.
DrMOS Power Stages
The power system of this motherboard, implemented in a 12 +1 phase power scheme, uses power modules, each of which also contains drivers and MOSFET switches for the upper and lower arms. This integration of components achieves increased efficiency of the power system.
6-Layer Printed Circuit Board
The multilayer design of the printed circuit board contributes to better heat dissipation in the power system area, enhancing overall computer stability and increasing the processor's overclocking potential.
8+4-Pin ProCool Power Connectors
The special ASUS ProCool power connectors ensure reliable cable connections from the power supply, reduced resistance, and improved heat dissipation.
TUF Chokes
Provide the CPU with a maximally stable current, improving overall computer reliability.
TUF Capacitors
Exclusive TUF 5K Black Metallic capacitors boast increased (up to 52%) thermal resistance and a lifespan increased by 2.5 times compared to standard ones.
VRM Digi+
The Digi+ Voltage Regulator Module (VRM) ensures high reliability and stability of power under any load.
Safe DRAM Overclocking
To achieve maximum memory subsystem bandwidth, a new solution has been proposed. ASUS OptiMem II technology means using optimized memory slot routing in a specific layer of the printed circuit board to reduce trace lengths, as well as additional shielding areas to eliminate electromagnetic interference.
PCIe 4.0 Support
Utilizing the capabilities of the PCIe 4.0 interface, three M.2 slots on this board provide data transfer speeds of up to 64 Gbps. They are ideal for connecting modern solid-state drives (one supports the 22110 format), significantly speeding up the booting of the operating system and launching applications.
Cooler and Quieter
The TUF GAMING B760-PLUS WIFI D4 features an enlarged VRM heatsink, and the three M.2 slots and chipset chip are equipped with heatsinks that provide the perfect balance of mass and surface area for effective heat dissipation.
Increased VRM Heatsink
A large heatsink is installed in the area of the voltage regulator module and chokes.
Optimized M.2 Heatsink Design
The three M.2 slots are equipped with separate heatsinks, allowing the drives to showcase their maximum performance without the risk of overheating.
Flexible Fan Control
TUF GAMING B760 motherboards provide comprehensive fan control both through the Fan Xpert 4 utility and the UEFI BIOS interface.
Multiple Temperature Data Sources
Using Fan Xpert 4 or UEFI, each connector can be configured to monitor and respond to the values of three user-defined thermosensors to adjust cooling based on workload.
Pump Connector
Specifically for water cooling systems, the motherboard features a connector for connecting a water pump (with PWM or voltage regulation).
Intelligent Fan Protection
A dedicated integrated circuit is designed to protect all fan connectors from overheating and current overload.
4-Pin Fan Connectors
Each fan connector on the board supports automatic detection of the fan type (PWM or voltage control).
Interfaces
The TUF GAMING B760-PLUS WIFI D4 unlocks the full performance potential with support for the latest version of the PCI Express bus, while the USB arsenal includes two Type-C connectors, and Thunderbolt 4 offers extended compatibility and increased bandwidth.
USB 3.2 Gen 2x2 Type-C
The availability of numerous USB ports allows for connecting a wide range of external devices to the computer. This TUF GAMING series motherboard features a USB 3.2 Gen 2x2 Type-C port on the rear panel with a bandwidth of 20 Gbps.
USB 3.2 Gen 2 Type-C for Front Panel
Numerous USB ports, including a USB 3.2 Gen 2 Type-C connector for the front panel, are designed for connecting various peripheral devices.
PCIe 5.0
The latest processors support the new PCIe 5.0 bus. PCIe 5.0 offers double the data transfer speed compared to PCIe 4.0, making it ready for new tasks that require intensive data exchange. The PCIe 5.0 bus also has other advantages, such as changes in the electrical part to improve signal integrity, a CEM connector with backward compatibility for expansion cards, and compatibility with previous versions of the PCIe bus.
Thunderbolt (USB4) Support
TUF GAMING motherboards are equipped with a dedicated connector to enable support for the Thunderbolt 4 interface. After installing a certified Intel ASUS ThunderboltEX 4 adapter into it, users can utilize this modern interface with a bandwidth of 40 Gbps for connecting high-speed peripherals. Additionally, this interface supports daisy-chaining multiple monitors and outputting to a display with a resolution of up to 8K. It also supports fast charging of devices with a charging power of up to 100W.
For Computer Enthusiasts
The TUF GAMING motherboard lineup is suitable for users with any level of PC building experience. The TUF GAMING product ecosystem makes it easier to find compatible components, and access to the Fan Xpert 4 feature, hardware parameters, two-way intelligent noise cancellation system, and RGB lighting is available through the user-friendly Armoury Crate interface. This platform offers intuitive tools for building the best computers.
Ease of PC Building
The TUF GAMING Alliance is a partnership in which ASUS collaborates with major computer component manufacturers to ensure guaranteed compatibility between motherboards and a wide range of components: computer cases, power supplies, coolers, memory kits, etc. The number of participants in the TUF Gaming Alliance and the range of components they offer is constantly growing.
SafeSlot Core+ and SafeDIMM
SafeSlot Core+ is a PCIe slot design that uses additional metal elements, providing increased strength and ensuring a reinforced grip on the graphics card. The PCIe 5.0 bus is twice as fast as PCIe 4.0, so to ensure the highest quality and reliability of the proprietary SafeSlot Core+ slots, corresponding changes have been made in the manufacturing process of the boards. Additionally, the new board implements ASUS SafeDIMM memory module protection technology, allowing for quick, precise, and confident handling of memory modules.
ESD Guards
To protect against electrostatic discharge, ASUS employs a special protective circuit capable of withstanding discharges of up to 10 kV through the air and up to 6 kV on contact (industrial standard – +/-6 kV and +/-4 kV respectively). Surface-mount TVS diodes (in DIP packages) help protect the PC from voltage spikes.
TUF LANGuard
The wired network connector on this motherboard is equipped with special protection against static electricity and voltage spikes, known as TUF LANGuard.
Stainless Steel Back Panel
The back panel of TUF GAMING series motherboards is made of stainless steel coated with a thin layer of chromium oxide, which has anti-corrosion properties. This ensures a long lifespan. TUF GAMING series motherboards have successfully passed 72-hour salt mist tests, while products from other manufacturers withstand only 24 hours in such conditions.
M.2 Q-Latch
The innovative Q-Latch mounting system simplifies the installation and removal of M.2 SSDs – no special tools are required. The mounting design includes a mechanism that secures the SSD in the M.2 slot without using traditional screws.
Non-Lost Screws
Special screws will not get lost when removing the heatsink for the M.2 device.
Q-LED
The Q-LED indicator system allows you to easily determine which component (CPU, RAM, GPU, storage) is causing issues with the computer's operation.
Complete Immersion in the Gaming World
The TUF GAMING B760 motherboards are an excellent foundation for building a high-performance gaming PC, offering a high-speed network controller that minimizes latency in online games, a quality audio system that enhances gameplay in shooters, and built-in RGB lighting that can be synchronized with compatible devices.
Wi-Fi 6
The motherboard is equipped with an Intel controller that complies with the Wi-Fi 6 (802.11ax) standard and has a maximum theoretical data transfer speed of 2.4 Gbps. The controller is optimized for efficient operation in congested networks where many client devices share a common channel.
2.5G Ethernet
The built-in 2.5G Ethernet controller allows for increased wired network connection speeds using existing cabling infrastructure. Lag-free online gaming, seamless video streaming, and fast file transfers are all achieved with the transition to the new Ethernet standard.
Two-Way Intelligent Noise Cancellation
ASUS motherboards come with software that implements intelligent noise cancellation technology for both incoming and outgoing (from the microphone) audio streams. The algorithm, based on a deep learning system with millions of samples of various types of noise, filters out background sounds: keystrokes, mouse clicks, etc.
Realtek Codec, 7.1-Channel Surround Sound
The audio system of the TUF GAMING B760 motherboards is based on a unique codec developed in close collaboration with Realtek. It features excellent specifications that guarantee crystal-clear sound. The signal-to-noise ratio of this audio solution is 98 dB for the line-out stereo.
DTS Audio Processing
The DTS Audio Processing feature uses a special algorithm to process sound played through speakers or headphones. It reduces distortion levels and enhances low frequencies. It also allows for sound customization.
Ignite the Game!
Serious performance tuning deserves the right aesthetics. The TUF GAMING B760 series motherboards are equipped with side zone lighting and allow the use of external LED strips in synchronization mode via ASUS Aura technology. Lighting effects can be synchronized with other Aura-compatible ASUS devices.
Second-Generation Addressable LED Strip Connector
Three connectors for addressable LED strips used on the motherboard support up to 500 LEDs in second-generation RGB strips. With their help, Aura Sync technology automatically adapts lighting effects for the entire system. The new connectors also ensure backward compatibility with existing devices that support Aura Sync technology. ```
