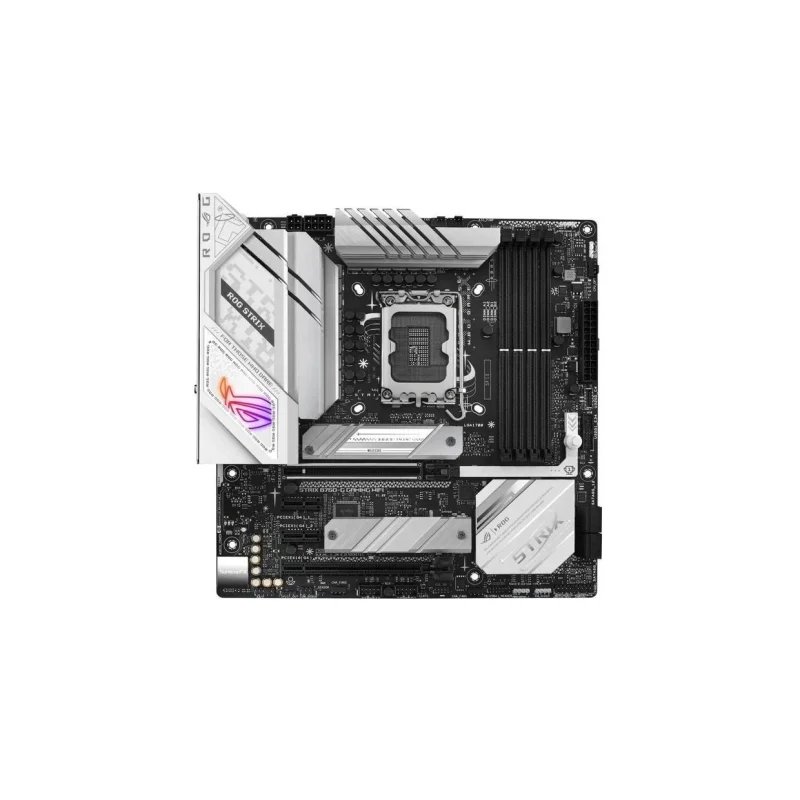

Motherboard ASUS ROG STRIX B760-G GAMING WIFI

The compact mATX motherboard ROG Strix B760-G Gaming Wi-Fi is an excellent foundation for building a powerful gaming computer. It features the same high-speed interfaces as its full-sized counterpart but differs by supporting lightning-fast DDR5 memory and an improved power scheme optimized for Intel's 13th generation processors. The silver-white accents perfectly complement the style of the ASUS AP201 case, while the retro design elements add a touch of classic Strix design. **Product Description** ASUS Motherboard ROG STRIX B760-G GAMING WIFI s1700 B760 4xDDR5 M.2 HDMI DP Wi-Fi BT mATX **Features:** **PCIE SLOT Q-RELEASE** This hardware button is designed to unlock the retention mechanism of the first PCIe slot with a single press, significantly simplifying the process of disconnecting a PCIe card from the motherboard. **M.2 Q-LATCH** The innovative Q-Latch mounting mechanism simplifies the installation and release of M.2 SSDs – no special tools are required. The mounting design includes a mechanism that secures the drive in the M.2 slot without using traditional screws. **BIOS FLASHBACK** With the BIOS FlashBack feature, users only need to download the latest version of the UEFI BIOS onto a USB drive formatted with FAT32, connect power to the motherboard, insert the USB drive into the board's port, and press the button located on it. This function does not even require a processor or memory modules. **Q-LED** Four indicators make it easy to determine which component may be causing issues with the computer's operation. **UNMATCHED PERFORMANCE** The optimized power system and incredibly fast DDR5 memory give the ROG Strix B760-G an edge over competitors. Carefully designed and placed VRM and M.2 drive heatsinks ensure the highest quality operation of these components even in a compact case. **POWER MODULES** The motherboard uses a 12 + 1 power scheme, with each phase rated for up to 60 A, easily handling the most demanding workloads of Intel Core™ 13th generation processors. **SELECT COMPONENTS** ASUS motherboards utilize the best ferrite-core chokes and capacitors that can operate longer and under more challenging conditions than standard components. **PROCOOL POWER CONNECTORS (8+4-PIN)** ASUS motherboards use the best ferrite-core chokes and capacitors that can operate longer and under more challenging conditions than standard components. **6-LAYER PCB** The multilayer PCB design promotes better heat dissipation in the power system area, enhancing overall system stability. **DDR5 MEMORY** ROG motherboards have always boasted extended capabilities for high-speed memory, and DDR5 is no exception. Thanks to the optimized routing of traces connecting the memory slots on the ROG Strix B760-G, the best memory kits can operate at speeds exceeding 7 GT/s. One can only imagine the results future DIMM modules will achieve! Experienced users can work with a wide range of tuning parameters in UEFI. **AEMP II** ASUS Enhanced Memory Profile (AEMP) is an exclusive feature implemented at the BIOS level designed for overclocking standard memory modules. The second generation of AEMP supports automatic tuning of memory kit parameters during system boot and takes advantage of the optimized trace layout on the Strix B760-G PCB to achieve even higher frequencies. AEMP II can overclock memory kits consisting of four DIMM modules and has broad compatibility that now extends to nearly all DDR5 modules without XMP profile support. **VRM HEATSINK ARRAY** The power system components are covered by two massive heatsinks. Channels improve heat dissipation from high-performance Intel 13th generation processors. **M.2 HEATSINKS** Both M.2 slots on the board are equipped with heatsinks to dissipate heat from NVME SSDs, allowing them to perform at their maximum without the risk of overheating. **CPU FAN CONNECTORS** A pair of PWM/DC connectors for CPU fans is located near the top edge of the board. **CHASSIS FAN CONNECTOR** A separate PWM/DC connector for complex liquid cooling systems. **FAN CONNECTORS (4-PIN)** The Strix B760-G offers two connectors for chassis cooling fans, each supporting automatic detection of fan types (PWM or DC). **MODERN INTERFACES** The Strix B760-G offers extensive connectivity options, supporting modern wireless and wired networks and a large number of USB ports. It is also equipped with the SupremeFX audio system, which provides crystal-clear sound in speakers and headphones for complete immersion in the game. **PCIE SPECIFICATIONS** The top PCIe 5.0 x16 slot features a reinforced design (SafeSlot) and support for a high-bandwidth bus, intended for installing next-generation graphics cards. Two M.2 slots with PCIe 4.0 interfaces are equipped with reliable heatsinks for maximum performance. **WI-FI 6E** The built-in Wi-Fi 6E module takes advantage of the new 6 GHz frequency band and up to seven 160 MHz channels, providing ultra-high wireless data transfer speeds, improved bandwidth, and reliable operation in environments with many simultaneously connected clients. **Intel 2.5G Ethernet Controller** The built-in Intel 2.5G Ethernet controller allows for increased wired network connection speeds. The result: lag-free online gaming, seamless video streaming, and fast file transfers without long waits. **USB** The Strix B760-G features two USB 3.2 Gen 2x2 Type-C® connectors for data transfer at speeds up to 20 Gbps. One is designated for the rear panel port. **SUPREMEFX** ROG SupremeFX is a unique combination of hardware and software for high-quality sound. On the Strix B760-G, it uses the S1220A codec to deliver audio with specifications of 32 bits, 192 kHz across all channels. The front panel connector is connected to a built-in Savitech amplifier capable of servicing a variety of gaming headsets and Hi-Fi headphones. **BOLD STYLE** The design of the Strix B760-G combines a black PCB and silver heatsinks with white accents, ensuring that any component or peripheral device will harmoniously complement its background. RGB lighting offers flexible options for personalizing the system's appearance to reflect your personal style. **IN ROG STRIX STYLE** Diagonal lines, brushed aluminum surfaces, and vibrant RGB lighting have become hallmarks of the ROG series, and the Strix B760-G proudly carries all these attributes. **LIGHT UP THE GAME!** ROG Strix motherboards are compatible with ASUS Aura lighting technology, offering a variety of visual effects and flexible lighting parameter adjustments for both built-in and external accessories. Effects can be synchronized with other compatible ROG devices: graphics cards, monitors, keyboards, and mice. **COMPATIBILITY WITH COOLERS** The ROG Strix B760-G has the same LGA 1700 CPU socket as the Z690 series motherboards, making it compatible with many existing coolers, including all liquid cooling systems from ASUS and ROG. **ROG STRIX ECOSYSTEM** The ROG Strix series includes a wide range of products for gamers: graphics cards, liquid cooling systems, cases, mice, keyboards, all uniting a consistent style and high quality. **TWO-WAY INTELLIGENT NOISE CANCELLATION** This feature uses a vast deep learning database to filter out over 5 million types of background noise from incoming or outgoing sound, ensuring that communication during games or calls is uninterrupted. **AI NETWORKING** GameFirst VI technology optimizes network performance by allocating bandwidth in real-time based on application usage scenarios and relevant learning algorithms. The latest update includes support for the GeForce NOW service to minimize latency during intense online gaming sessions. **UEFI BIOS** The ROG-styled UEFI BIOS interface provides everything needed for tuning, overclocking, and monitoring a system built on modern processors. It features modes for both novice and experienced users. **AI SUITE 3** The AI Suite 3 interface offers capabilities for managing the digital power system and performing hardware monitoring in the OS environment. Intuitive sliders allow control over VRM parameters, including Load-Line Calibration (LLC), switching frequency, and voltage drop, while tracking vital CPU metrics and fan speeds in real-time. **SONIC STUDIO III** The latest version of Sonic Studio software can reproduce virtual spatial sound based on sound perception modeling (HRTF*) when using a headset. The included equalizer allows flexible tuning of sound parameters to your liking. **DTS SOUND UNBOUND** With DTS Sound Unbound, the ROG Strix B760-G motherboard allows for incredible sound in games and other entertainment applications, delivering an astonishing sense of presence. Utilizing the capabilities of Windows spatial sound technology, DTS Sound Unbound shapes sound in a virtual three-dimensional space, placing you right in the center of the sound landscape. **AIDA64 EXTREME** The ROG Strix B760-G motherboard comes with a six-day subscription to AIDA64 Extreme – a tool that provides detailed information about hardware and software, as well as testing the performance of the entire system or its individual components. AIDA64 Extreme includes monitoring and diagnostics features to identify and prevent hardware issues. All critical system metrics – voltage, temperature, fan speeds – can be tracked in real-time on a monitor or on dedicated displays or LCD panels of a comprehensive ROG liquid cooling system. **ARMOURY CRATE** Armoury Crate is a unified control center for gaming devices. Its intuitive interface features various settings related to lighting, such as visual effects and synchronization between different devices using Aura Sync technology. With the Fan Xpert 4 tool, users gain complete control over the operation of fans, pumps, or comprehensive liquid cooling systems. There is also a section for viewing news from ASUS, registering purchased devices, and downloading useful materials (user manuals, drivers, utilities).
