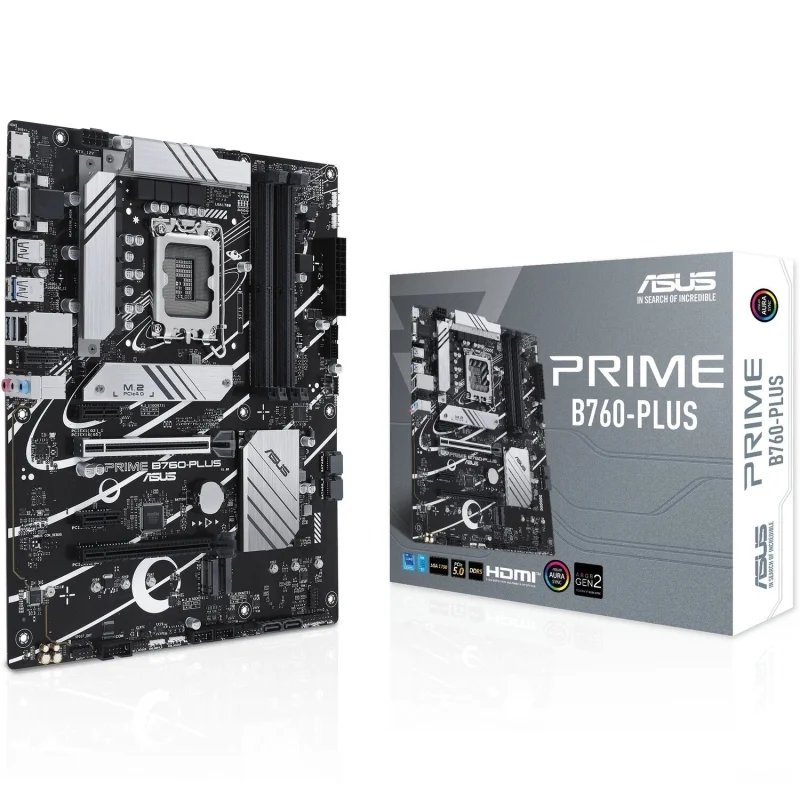

Motherboard ASUS PRIME B760-PLUS s1700

ASUS Prime motherboards are designed to unlock the full potential of the latest Intel 13th generation processors. The PRIME B760-PLUS model combines a powerful power system, efficient cooling, and intelligent tuning features through intuitive software and exclusive BIOS functions. **Flexible Tuning** The PRIME B760-PLUS motherboard offers flexible tuning options for various computer parameters to adapt performance to current tasks. **Intelligent Management** ASUS intelligent management technologies optimize various system parameters in real-time. They provide capabilities for both beginners and experienced users. **Low Power Consumption** The energy-saving feature offers several options to optimize power consumption. You can enable a CPU power limit, reduce the brightness of the Aura lighting, and select a fan profile that corresponds to maximum energy savings. You can also enable the power-saving plan built into Microsoft Windows. **Flexible Cooling Management** Users gain complete control over fan operation or a comprehensive water cooling system using the Fan Xpert 2+ utility. In automatic tuning mode, regardless of the cooler type, all cooling system parameters are set with a single mouse click. If the quiet mode is selected, the fans will operate at low speed to minimize noise. Control is also available through the UEFI BIOS interface. **Digital Power System** The Digi+ controller provides real-time power management and allows precise tuning of the CPU voltage regulator for maximum system stability and performance. **UEFI BIOS** The ASUS UEFI BIOS interface provides everything needed for tuning, overclocking, and monitoring systems built on modern processors. It has modes for both beginners and experienced users. **Fine Tuning** The Advanced mode in UEFI BIOS is designed for fine-tuning the system and offers a built-in parameter search function. Optimize computer settings, save profiles with configurations, and overclock components to fully realize the processor's potential. - **Search Function** - Helps quickly find the desired parameter in the UEFI BIOS menu. - **ASUS User Profile** - Saves configuration settings for BIOS updates or sharing with friends. - **Easy and Fast Setup** - The EZ Mode simplifies the display of key parameters, statistics, and wizards for step-by-step system setup, making it ideal for quick initial computer configuration. - **Intuitive Fan Tuning** - Simply change the shape of the graph to adjust speed using the mouse. - **Stealth Mode** - Enables and disables Aura lighting (or any built-in LEDs). **Cooling** To ensure stable computer operation under heavy loads, the PRIME B760-PLUS motherboard is equipped with numerous heatsinks and fan connectors. **M.2 Heatsink** The M.2 drive is located under a passive cooling heatsink, minimizing the likelihood of SSD performance drops due to thermal throttling. The heatsink is secured with non-random screws. **VRM Heatsink and Thermal Pads** Large heatsinks with thermal pads are located on the power elements—transistors and chokes. **Enhanced Power Subsystem** The latest multi-core Intel processors require high power supply, which is why the PRIME B760-PLUS motherboard is equipped with a subsystem capable of providing adequate power parameters and stable computer operation even in the most resource-intensive tasks. **ProCool Connector** These 8-pin connectors connect the 12V power rail of the power supply directly to the processor. Each connector features an exclusive design with solid contacts capable of handling high current. **6-Layer Printed Circuit Board** The multi-layer design of the printed circuit board facilitates heat dissipation from components, thereby increasing the frequency potential of the processor during overclocking. **AEMP II for Improved DDR5 Performance** ASUS Enhanced Memory Profile II (AEMP II) is an exclusive feature implemented at the BIOS level and designed for memory modules with PMIC limitations. The AEMP II function operates based on the ability of the processor and memory modules to train memory chips on the modules to ensure optimal operating frequency, allowing for increased performance. The special flexible memory training method of AEMP II not only makes it easy to set faster memory settings but also maintains system stability, regardless of whether entry-level or high-speed kits are used. **ASUS OptiMem II** To enable the latest Intel processors to exchange data with memory at maximum speed, a new solution has been proposed. ASUS OptiMem II technology involves using optimized memory slot routing in a specific layer of the printed circuit board to reduce trace lengths, as well as additional shielding areas to eliminate electromagnetic interference. **Advantages of ASUS OptiMem II** - Improved stability and guaranteed compatibility of memory modules - Reduced latency during memory access at equivalent voltage - Enhanced memory frequency tuning headroom **Three M.2 Slots (up to 64 Gbps)** Utilizing the capabilities of the PCIe 4.0 interface, the three M.2 slots on the PRIME B760-PLUS motherboard provide data transfer speeds of up to 64 Gbps. They are ideal for installing modern solid-state drives, significantly speeding up operating system boot times and application launches. **PCIe 5.0 Slot** PCIe 5.0 offers double the data transfer speed compared to PCIe 4.0, making it ready for new tasks that require intensive data exchange. The PCIe 5.0 bus also has other advantages, such as changes in the electrical part to improve signal integrity, a CEM connector with backward compatibility for expansion cards, and compatibility with previous versions of PCI Express. **USB 3.2 Gen 2x2 Type-C** Numerous USB ports, including a USB Type-C connector of the USB 3.2 Gen 2x2 standard (up to 20 Gbps) on the rear panel, are designed for connecting various peripheral devices. **USB Type-C for Front Panel** Numerous USB ports, including a USB 3.2 Gen 1 Type-C connector for the front panel, are designed for connecting various peripheral devices. **Thunderbolt 4 (USB4 Compatible)** The PRIME B760-PLUS motherboard supports the USB4 standard via the Thunderbolt (USB4) connector. With an ASUS expansion card, users can utilize this modern interface with a bandwidth of 40 Gbps for connecting high-speed peripherals and fast charging devices. Additionally, this card supports daisy-chaining multiple monitors and outputting to two 4K resolution monitors. **2.5G Ethernet from Realtek** The Realtek 2.5G Ethernet network controller provides high-speed TCP and UDP packet processing and reduces the load on the central processor. **LANGuard** The wired network connector on this motherboard is equipped with special protection against static electricity and voltage spikes. **High-Quality Built-in Audio Subsystem** Thanks to the use of high-quality components and thoughtful design, the audio subsystem of the motherboard boasts excellent sound quality. - **Isolation** - Provides quality isolation between the analog and digital parts to reduce mutual interference. - **Audio Channel Separation** - To enhance audio signal quality, the left and right channels are located on different layers of the printed circuit board. - **High-Quality Audio Capacitors** - Capacitors from renowned Japanese manufacturers contribute to the highest sound quality. **Light Up the Game!** Serious system performance tuning deserves corresponding aesthetics. The exclusivity of the system designed for enthusiasts is highlighted by the built-in ASUS Aura lighting system. Additionally, standard LED strips can be connected to the motherboard, which is equipped with dedicated connectors. The lighting system can operate in multiple modes and synchronize with other devices that support Aura technology. **2nd Generation Addressable LED Strips** Three connectors for 2nd generation addressable RGB LED strips used on the motherboard support the detection of the number of LEDs on the second-generation strips, allowing the software to automatically adjust lighting effects for specific devices. The new connectors also ensure backward compatibility with existing devices that support Aura lighting. **Armoury Crate** In the intuitive Armoury Crate interface, you can easily configure Aura Sync RGB lighting settings for each compatible device in your arsenal, as well as working parameters for the ever-growing family of ASUS devices, such as keyboard and mouse settings. Additionally, Armoury Crate features dedicated sections for viewing news from ASUS and registering purchased devices.
